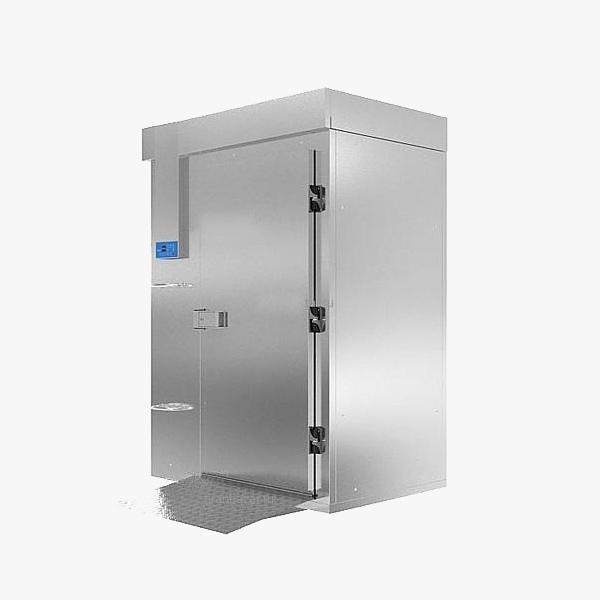

Blast Chilling Chamber FastCold BC 2/1-T1

Blast Chilling Chamber FastCold BC 2/1-T1

Equipment Type: Blast chill chamber

Manufacturer: FastCold

Model: BC 2/1-T1

Country of Manufacture: Russia

  To calculate the price

Model description

  • Chamber with a floor (the chamber floor is made from form of a four-layer sandwich panel: AISI 304 stainless steel sheet, 9 mm plywood, insulation - polyurethane foam, AISI 304 stainless steel).
  • The walls of the chamber are made of three-layer sandwich panels 80 mm thick, interconnected by tie locks.
  • The outer skin is made of galvanized steel with a polymer coating of white color.
  • The inner lining of the chamber is made of food-grade AISI 304 stainless steel. There is a tray for collecting condensate from the evaporator and there is an outlet for drainage in the wall panel.
  • The door has a right or left hinge arrangement (optional), with a perimeter seal.
  • The electronic control unit installed on the remote console.
  • The swivel design of the fan panel provides access for servicing.
  • The chamber condensate drain is made of a flexible hose.
  • Control over the temperature regime of the chilled and frozen products carried out by the probe installed directly in the product, or by the set time.
  • R 404a refrigerant is used.

Standard equipment

  • Chamber
  • Condensing unit based on a semi-hermetic Bitzer compressor and condenser (Italy)
  • Specialized evaporation system for intensive cooling and freezing
  • Control unit, complete with remote control panel (Italy)
  • Temperature-sensor probe, for monitoring the cooling process and freezing
  • Accessories of a premium class of the European producer

Additional Available Options:

  • outer lining made of stainless steel AISI 304
  • without floor (stainless steel tray 2 mm thick mounted on a heat-insulating plastic gasket)
  • heated ramp
  • AISI 304 stainless steel trolley of 20, 25 and 25 levels for baking sheets 600 * 800mm or GN 2/1 gastronorme containers
  • baking sheets from food stainless steel AISI 304 600 * 800 mm
  • UV-lamp for disinfection of the room
  • an additional door for organizing a tunnel-type chamber
  • wooden box packaging for transportation over long distances

Technical specifications

Dimensions (WxDxH) 1650*1250*2400
Weight kg: Cabinet 505
Capacity 1 truck at 20 levels for 600*800 baking trays or GN 2/1 container
Blast chilling capacity in 90 min. kg 150
Shock freezing capacity in 240 min. kg.
Blast chilling temperature range °C: +90/+3
Temperature range of shock freezing °С
Electric power kW, not more than 9
Power supply 380/50/3
